Easy Installation
How to insert a Patio Pet Door Insert into your glass sliding door in 5 seconds!
Simply open your glass sliding door. Insert the pet door insert into the bottom track of your glass sliding door, lean it to the side, extend the top adjustable panel and turn two black knobs clockwise to make top adjustable panel stay in place and you are done.
Rubber Seals
Installing a Weather Seal
The weather strip prevents any drafts and ensures a tight seal.
-
![]()
Option 1: LOCKING BRACKET
LOCK GLASS SLIDING DOOR ONLY
FREE with Patio Link pet door insert purchase!
Simply relocate your female latch to a locking bracket on the pet door insert in alignment to the handle.Very easy to install!
Tools required for installation: Hand Drill.
PHOTO ABOVE: COMPATIBLE type of a latch for an installation to a Locking bracket
If your female latch is sitting inside the channel, you will always need an Adaptor Panel.
-
![]()
Option 2: ADAPTOR $
Adaptor allows you to lock BOTH GLASS & SCREEN DOORS into an adaptor.
An adaptor is a long skinny panel that gets installed next to pet door insert. Adaptor is used for 2 options:
- close BOTH glass and fly screen door into an adaptor, and/or
- If your female latch is sitting inside the channel, you will always require an adaptor as you will need to relocate internal female latch to an adaptor.
Adaptor comes in 3 sizes: 2.1m, 2.5m and 3m tall. You will need to cut the adaptor and fit it into your track.
Wonderful feature about adaptor is that you can lock your security screen door into adaptor, enjoy breeze coming inside your home and keep unwanted bugs outside!
Tools required for installation: Hack Saw, Hand Drill, Pliers. No damage to your sliding doors, suitable for renters!
-
![]()
Option 3: ADAPTOR + L PROFILE $
Adaptor for Stacker Doors
If you have stacker doors and measurement from glass sliding door up to the fly screen door is more than 11cm, you will need to purchase 1x ADAPTOR and 1x L Profile, which is an adaptor extender. L Profile will need to be connected to an adaptor with several pop rivets and it will extend an adaptor up to 17cm.
How to connect 1x Adjustable Panel on top of Patio Link Pet door insert
How to install a window extension 2.21m - 2.30m & 2.31m - 2.40m
How to install a window extension 2.41m and above
How to connect a pet door insert with a Plate:

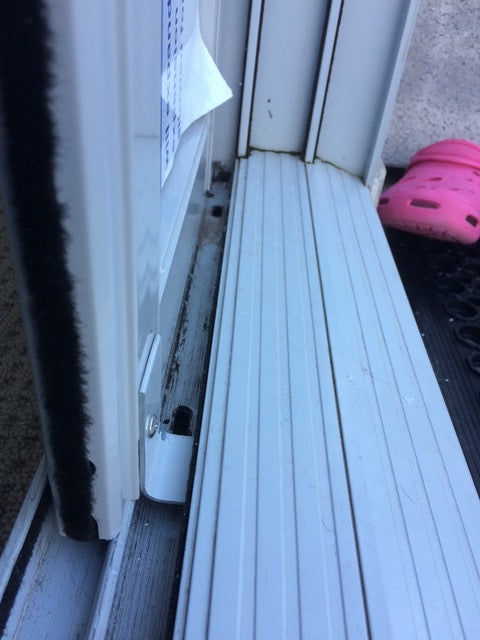

Wider track - what to do:
Is your bottom glass sliding door track wider than 3.3cm?
If your glass sliding door tracks are wider than standard, you will need to sit the pet door insert on top of the rail, as shown on the photo.
Purchase a Plate $5 to create an angle bracket. One screw goes into bottom of the pet door insert and other leg of the bracket is extended to the end of the track. This will give a pet door extra stability once installed and you will be able to align the locks nicely together.
NARROW TRACKS & What To Do
Is your glass sliding door tracks narrow? 22-25mm wide
If your glass sliding door tracks are less than 26mm wide, you will need 2 legs for the bottom of the pet door insert.
How to remove corner clip from the semi hard flap?
Is your flap fmagnetic closure too strong for doggie or a cat?
If you just got your new Patio Link Pet door insert and your doggie is little unsure how to use the flap, we recommend to remove 1 or both corner black clips from the flap. These clips are not glued on, they are firmly wedged on.
Both of these clips are attracted to the internal magnet inside the rise and by removing them, it will make it easier for doggie to push the flap and use it.
Keep those clips somewhere safe because when you do decide to put them back on, you can wedge them back on the flap and use a pair of pliers to squeeze them on the flap to stay.
Another tip: You can get a long piece of string, lift the flap up all the way and tie the string under the flap to keep the flap open. Tie the string around the black knob under the top adjustable panel. Once doggie or cat goes through the flap area a few times, he/she will get confident and happy to go through the pet door. Take off the string and let doggie/cat now use the pet door with a flap on.
Middle Opening
Do you have Double Sliding Doors?
Our pet door inserts can connect and slide with your double sliding doors.
We have special wheels that can be inserted at the bottom inside of our pet door insert. You place the pet door insert into your glass sliding door channel and relocate your existing female latch to either a locking bracket or an adaptor.
Next step is to connect the pet door insert to the sliding door frame in area where female latch used to sit.
Simply put 1 screw through the existing screw hole to connect pet door insert through the frame.
If existing female latch screw hole is pointing opposite direction or is further away of reach to the pet door insert, then you will need 2x PLATES $5ea to connect pet door to frame.
Plate is a great bracket as it allows you to install and connect pet door to your sliding door frame without any damage to your frame.
IMPORTANT TO CHECK THESE MEASUREMENTS:
L BRACKET for wooden sliding door, how it works
How to connect a Black Knob back on your pet door insert
Lockable flap cover - how it works?
Frequently Asked Questions
Why should I consider installing a pet door?
Why should I consider installing a pet door?
Installing a pet door provides convenience for both you and your furry friend, as it allows them to access the outdoors whenever they need to go out or come back in.
Can I install the Pet Door Insert myself, or do I need professional assistance?
Can I install the Pet Door Insert myself, or do I need professional assistance?
Our Pet Door Inserts are designed for easy DIY installation. With our detailed instructions and video tutorials, most customers find the installation process straightforward. However, if you prefer professional assistance, we can recommend a local handyman or HIRE A HUBBY 1800 803 339
Can I remove the Pet Door Insert if I move to a new house?
Can I remove the Pet Door Insert if I move to a new house?
Yes! Our Pet Door Inserts are perfect for renters and those who frequently move. They can be easily removed from your sliding doors without causing any damage. Simply uninstall the insert and take it with you to your new location. You can then reinstall it in your new home, providing your pets with the same convenience and freedom.
Will the Pet Door Insert match the aesthetics of my sliding doors?
Will the Pet Door Insert match the aesthetics of my sliding doors?
Absolutely! At Patio Link, we pay close attention to design details. Our Pet Door Inserts are made to complement the appearance of your sliding doors, ensuring a seamless blend. We understand the significance of maintaining an aesthetically pleasing home and our aim is to provide a functional solution for your pets without compromising on style.
How can I ensure the security of my sliding doors after installing a Pet Door Insert?
How can I ensure the security of my sliding doors after installing a Pet Door Insert?
We offer two options to enhance the security of your Pet Door Insert. The Locking Bracket provides a simple and effective way to secure the insert. It allows you to relocate your current female latch onto the locking bracket, ensuring a secure lock for your glass sliding door. Alternatively, you can choose the Adaptor, which provides a comprehensive security solution by allowing you to lock both the glass and security fly screen door.
What if my sliding door configuration requires additional support for a secure fit?
What if my sliding door configuration requires additional support for a secure fit?
If you require extra items for your installation, you are welcome to email us some photos of your sliding doors , both locks standing inside and a photo of your bottom track and we will check and help you choose the right item to complete your installation.
